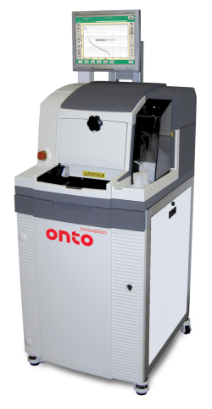

ECV Pro

Advanced Electrochemical Capacitance Voltage

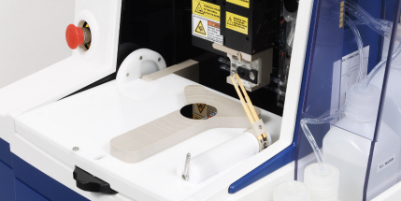

The patent-pending ECV Pro is the result of a total redesign that completely redefines ECV profiling. We have taken 25 years of ECV profiling experience and coupled it with 25 years of advances in instrument control technology to produce the most precise, most reproducible, most highly-automated electrochemical CV profiler ever. The ECV Pro was designed, from the ground up, to eliminate all operator dependent variations in the data. All the operator has to do is set the wafer on the stage. After initial setup, the ECVPro takes care of everything else.

Applications

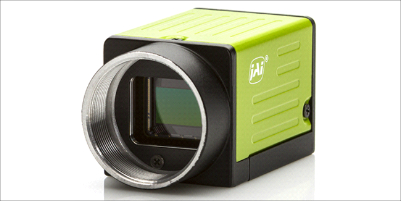

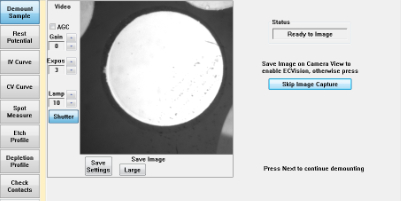

ECV Pro introduces the first ever in-situ camera for unprecedented levels of control, ECVision™. allowing real-time imaging of the semiconductor/ electrolyte interface. Now you can see exactly what occurs at the sample surface during a measurement. For III-Nitrides, the ECV Pro GaN option extends the performance of the system for optimal profiling of GaN, InGaN and AlGaN.

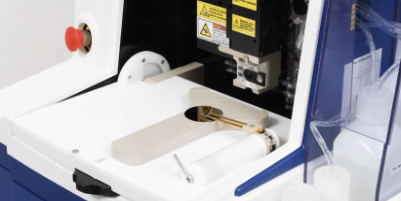

Hg Probe Alternative: The ECV Pro’s accuracy and reproducibility provide a viable, safe and environmentally friendly alternative to the Mercury probe. ECV Pro uses no Calomel reference electrode and is entirely Mercury free. The horizontal stage makes monitoring spatial distribution across a wafer simple and convenient. Using the depletion profi le mode and the ultra-repeatable contacting area, ECV Pro can accurately measure the surface doping variations across a wafer.

Alternative to Hall: ECV Pro offers many advantages over Hall measurements. These include measurement of electrically activated dopants and individual structural layer information. Additionally, the ECV Pro can be applied to a wide range of materials and structures and is not limited to profi ling only on Si or suitable PN structures.

Features

For III-Nitrides, the ECV Pro GaN option extends the performance of the system for optimal profiling of GaN, InGaN and AlGaN.

  • Elimination of data variation due to operator
  • Dramatic improvement in reproducibility
  • Integrated design leads to small footprint
  • ECVision aids measurement diagnostics
